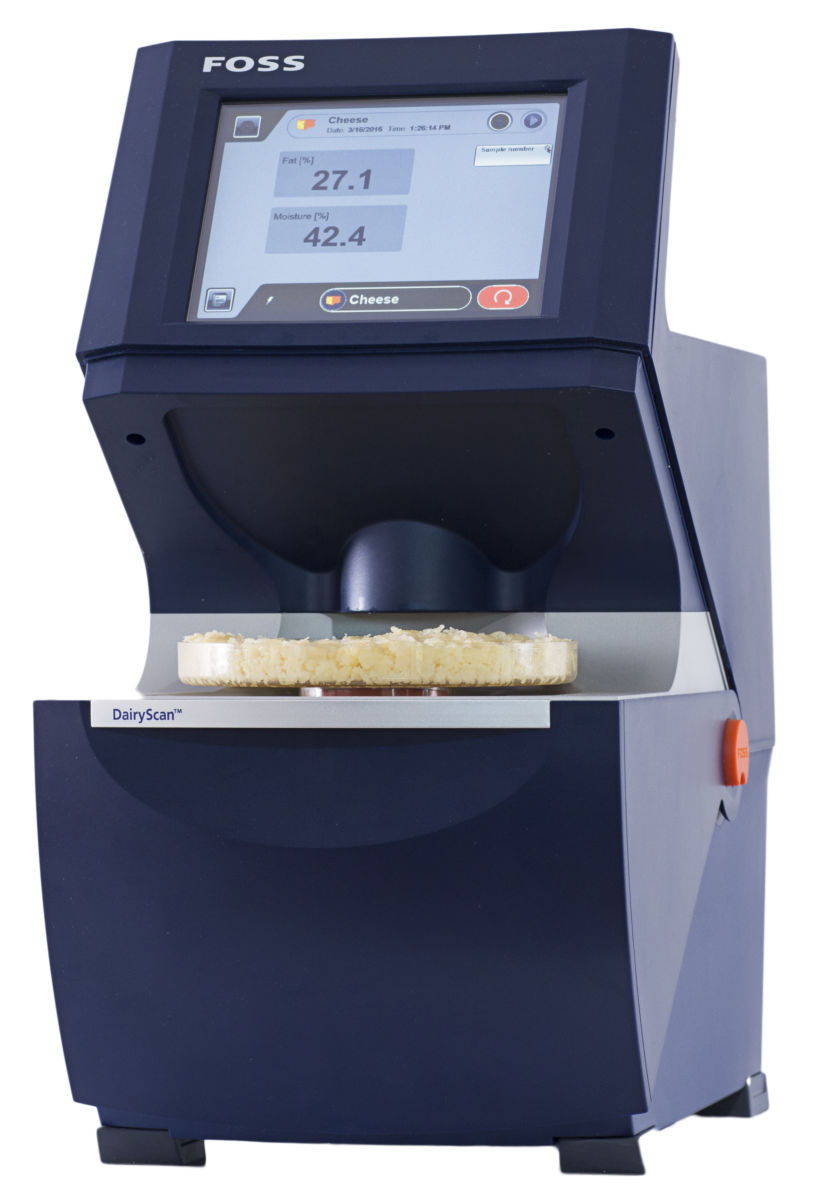

DairyScan gives you fast and accurate fat and moisture testing with-in your cheese production. Ideal for smaller dairies wanting to improve quality and optimise production.
Faster and cheaper alternative to traditional methods

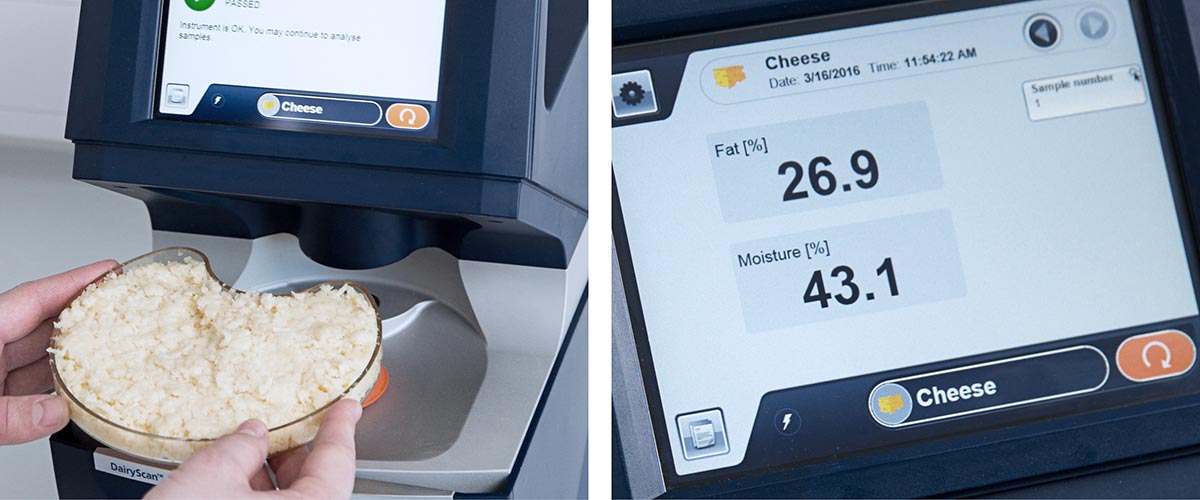

Fat & Moisture results delivered in 45 seconds for in-process and finished cheese testing. Avoid time consuming traditional testing methods to spot out-of-spec production before it impacts yield and product quality. No need for chemicals or disposables enables you to keep costs down.
Easy to install and run

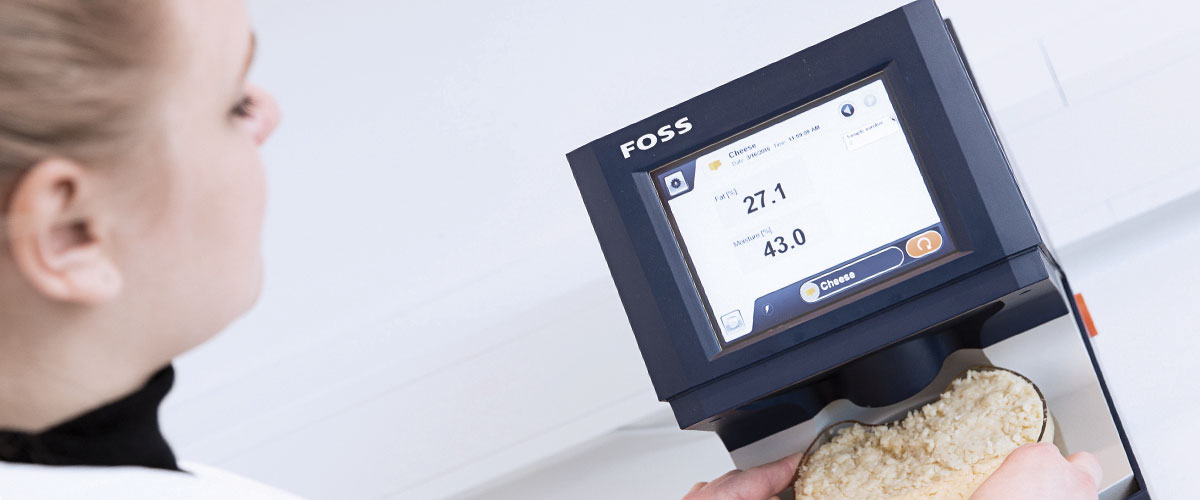

Ready to use, industry leading calibrations based on over 40,000 samples. User friendly interface and software makes it easy to use from day one – just place sample and push start.
FOSS your global partner in profitable dairying
DairyScan is based on the renowned FoodScan technology which is considered the gold standard in analysis of solid and semi solid dairy products. As the worldwide leader in analytical solutions we have pro-vided more than 5000 instruments to the global dairy industry.
Sample type
Cheese
Parameters
Global ANN calibrations: Fat and moisture
Technology
Near Infrared (NIR) transmittance technology
| Technical specifications | |
| Analysis time | 30 seconds for 10 sub-samples |
| Self test | Approximately 10 minutes at room temperature |
| Measurement mode | Transmittance |
| Wavelength range | 850 - 1050 nm |
| Detector | Silicon linear array |
| IP Class | 42 |
| Installation requirements | |
| Power supply | 100-240 V AC, 100 VA, 50-60 Hz, Class 1, with protective earth |
| Ambient temperature | 5-35ºC |
| Storage temperature | -20 ºC to 70 ºC |
| Ambient humidity | < 93% RH, cyclic up to 100% RH |
| Weight | 11.4 kg |
| Dimensions (w × h × d) | 230 x 420 x 390 mm |
| Environment | Stationary, light industry |
| Instrument management | |
| Networking software | FossManager |
