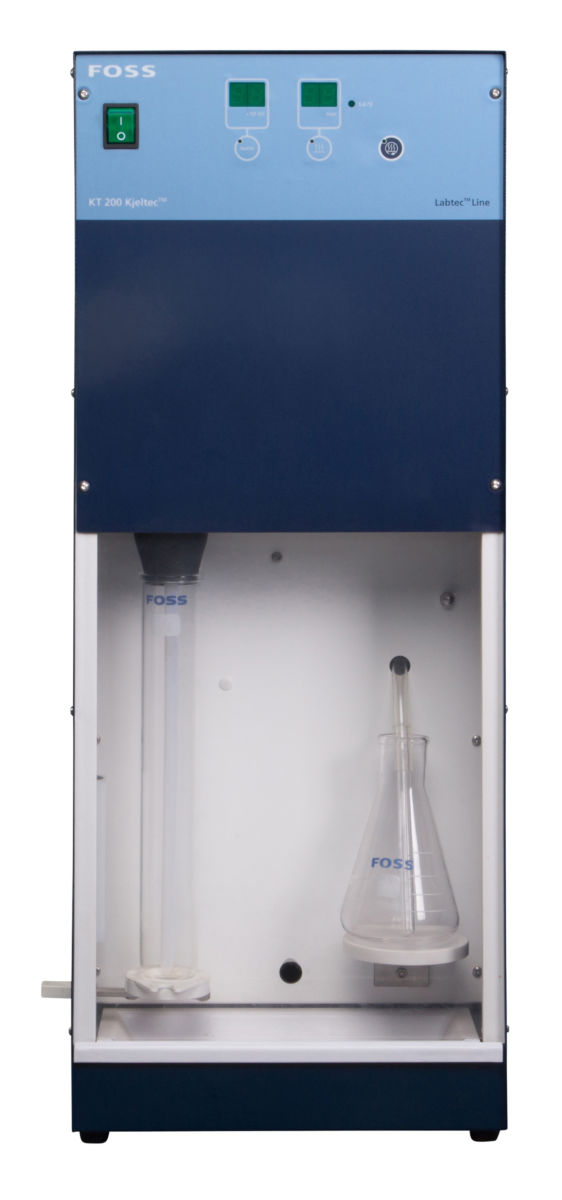

The KT 200 Kjeltec is a convenient and safe distillation unit for rapid steam distillation. Many other distillations can be performed efficiently with the KT 200. These include sulphur dioxide, cyanide, phenol, alkaline direct distillation and alcohol.
Convenient operations
KT 200 Kjeltec provides a simple and reliable solution for safe and semi automated distillations. The addition of alkali and the time interval for distillation can be pre-programmed for consistent results independent of operator.
Improving safety in the laboratory
A high accuracy bellow pump for accurate reagent dispensing pro-vides long term stability in delivery of the alkali. Ensure safe operations with patented SAfE feature for safe distillation of samples that form salt cakes. Additional safety features including safety door, plus level pins and overpressure sensors for the steam generator.
Effective laboratory operations
Running costs are low through optimised applications. Downtime and service costs are minimised using selected components. A routine maintenance schedule supports GLP routines.
Sample types
Raw materials and finished products in food, feed and agriculture
Parameters
Nitrogen and protein
Technology
Kjeldahl and other nitrogen based chemical analysis
Approvals
Officially approved (AOAC, EPA, DIN, ISO) for simplified validation
| Performance data at 230 V | |
| Distillation time | 4 minutes at 30 mg N (7 min la 200 mg N) |
| Distillation capacity | ~ 30 ml/min |
| Measuring range | 0.1 – 200 mg N |
| Reproducibility | 1% RSD (including the digestion step) |
| Recovery | > 99.5% at nitrogen levels between 1 – 200 mg N |
| Reagent pump volumes | 0 – 150 ml in steps of 10 ml |
| Delay | 12 seconds |
| SAfE (Patented) | 2 seconds |
| Installation requirements | |
| Power supply | 200-240 V 50 – 60 Hz |
| Water consumption | 2 l/min at water temp of 30°C (During distillation only) 1 l/min at water temp of 15°C |
| Power consumption | 1900 W |
| Ambient temperature | Max 40ºC |
| Ambient humidity | Max. 80% relativ |
| Drain | Pentru apa de racire |
| Weight netto | 25 kg |
| Dimensions (w x d x h) cm | 30 x 28 x 77 |
Accessories
• Titration unit complete, 50 ml
• Adapter for Büchi tubes
• Basket for 12 receiver flasks (250/300 ml)
• Receiver flasks, 250 ml (set of 10)
• Kjeltec DD kit for direct distillation (DD) procedure comprising 12 distilling tubes (750 ml), 12 receiver flasks (300 ml), stand for tubes, basket for flasks and application note
• Handling device for digestion tubes
