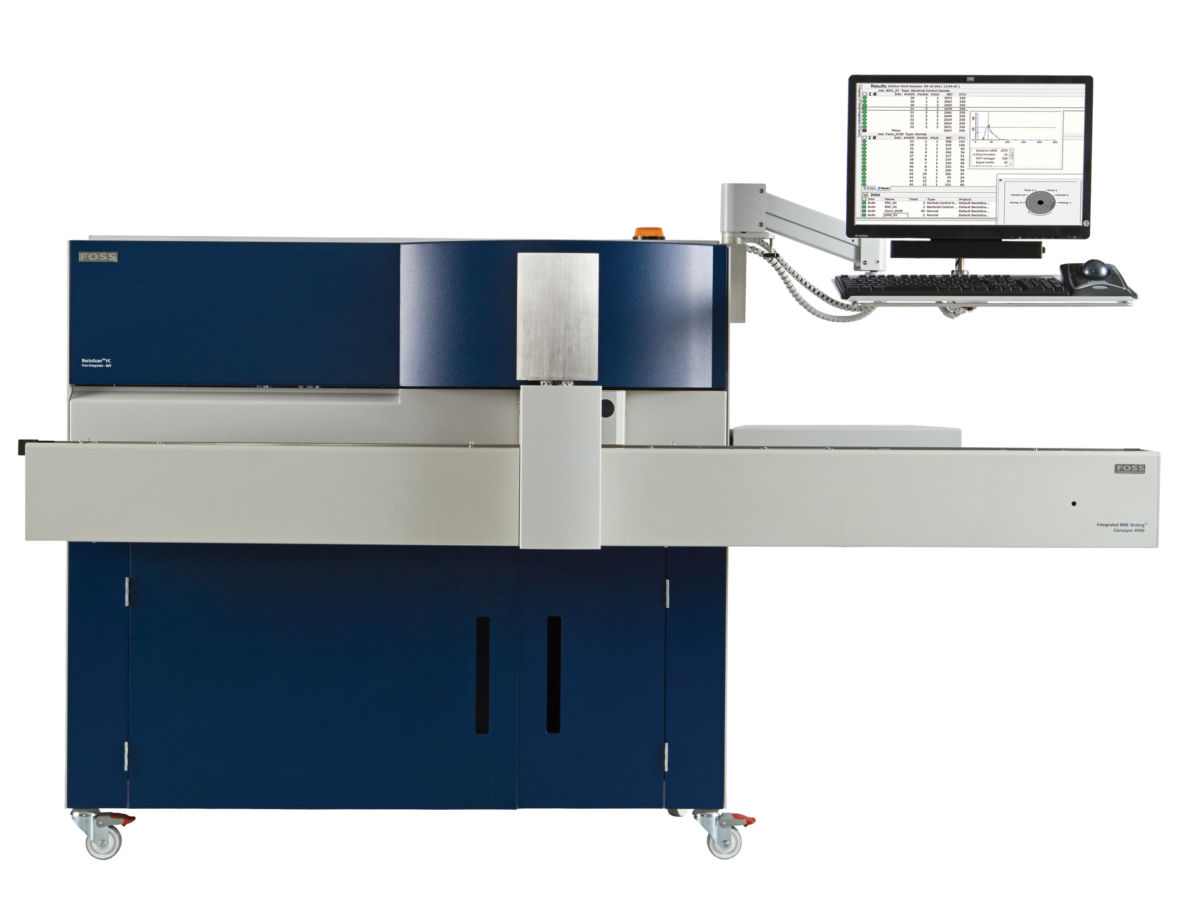

Based on Individual Bacteria Count (IBC), BactoScan FC+ gives an accurate determination of the hygienic quality of raw milk with a capacity of testing up to 200 samples per hour. BactoScan is the industrial standard in many countries all over the world, and in the EU more than 75% of all milk supplies are paid based on BactoScan results.
Superior accuracy through Individual Bacteria Count
BactoScan FC+ measures the hygienic quality of milk by analysing bacteria in raw milk. As the automated BactoScan FC+ counts the total bacteria as single cells and not clusters, it gives a uniform high accuracy of results.
High capacity with confidence
High performance capacity enables a high throughput of milk samples. Reduce labour time and get instant results for fast response to farmers. The repeatability and reproducibility of BactoScan FC+ is excellent compared to plate count methods, while a self-cleaning program minimises carry-over contamination from previous samples.
Optimise instrument management with FOSS digital services Ensure consistent performance of all instruments in your network and avoid downtime by making upgrades and adjustments while instruments continue to run. Protect your data with automatic back up.
Sample type
Cow, goat, sheep and buffalo milk
Parameters
Individual Bacteria Count (IBC/ml)
Technology
Flow cytometry technology that enables precise and instant milk bacteria analysis
Approvals
BactoScan FC+ is a FDA/NCIMS and MicroVal (EURL) approved rapid electronic counting method and complies with ISO/IDF guidelines
| Performance | |
| Measuring range | 5.000 - 20.000.000 IBC/ml |
| Repeatability | ||
| Range (IBC/µl) | SR (log-units) | Typical SR (log units) |
| 10–50 | 10–50 | 10–50 |
| 51-200 | 0.05 | 0.04 |
| >200 | 0.04 | 0.02 |
| Entire range | 0.05 | |
| Reproducibility (between instruments): | ||
| Range (IBC/µl) | SR (log-units) | Typical SR (log units) |
| 10–50 | 0.11 | 0.08 |
| 51-200 | 0.07 | 0.06 |
| >200 | 0.06 | 0.04 |
| Carry-over effect | < 0.5 % ((uncompensated) |
| Sample type | Cow, sheep, goat and buffalo |
| Speed* | 65, 130, 200 samples per hour |
| Working factor | Standard 300, (optionally: 95, 600 and 1200) |
| Accuracy | Typical Sy.x < 0.25 log units in the entire measuring range |
| Reference or anchor method | Standard Plate Count (SPC) (IDF Standard100B:1991) |
Application data
| Analysis time | 9 minutes |
| Sample intake | approx. 4.5 ml |
| Sample temperature | 2– 42°C (35.6-107.6 F) |
| Sample quality | Raw milk of normal composition and good quality. Unpreserved or preserved with azidiol |
| Instrument management | |
| Networking software | FossManager |
*BactoScan™ FC+ Semiautomatic is only available at a capacity of 65 samples per hour. This version does not include Conveyor and Stirrer system.
