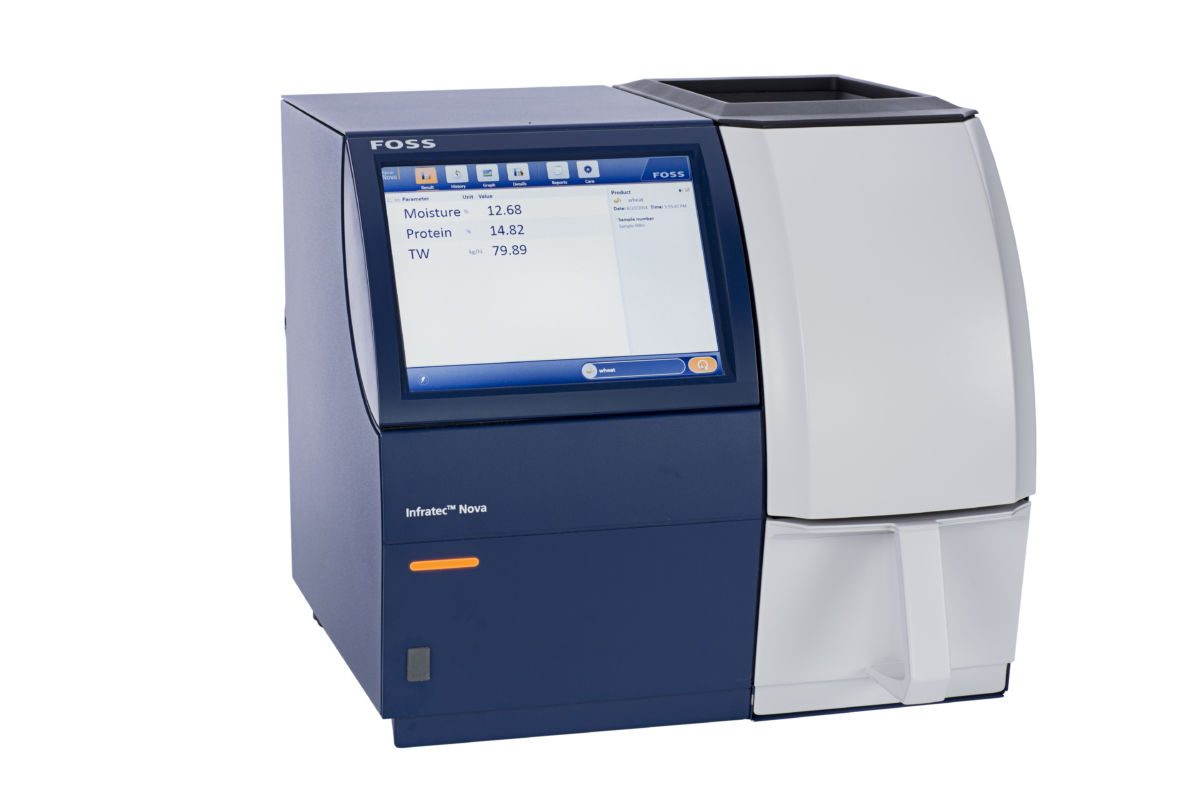

Infratec NOVA gives you security, confidence and reliability in your grain analysis and is officially approved and established worldwide as the standard for determining protein, moisture, oil and starch.
Fair grain trading with the global standard in grain analysis
Infratec NOVA with the unique ANN calibration gives you results with outstanding accuracy and stability that enables you to analyse even the most unusual samples during difficult harvests. It is a global system for a global market built on 30 years of experience and harvest data comprising over 50,000 cross checked samples.
Keep the results flowing across the season
Stay in control of remote instruments through purpose built connectivity tools and monitor every instrument with remote diagnostics helping in rapid problem solving. Easy to plug and play instruments which enables instant swaps if needed during high season.
The most trusted way to ensure fair payment
The factory standardized instruments provide a common base for payment giving the exact same performance, reliability and repeatability. With the latest connectivity solutions offered by FOSS all instruments keep measuring the same regardless of local conditions making the Infratec NOVA the number one test for grain everyone agrees on.
Sample type
Wheat, barley, corn and other cereals, oilseeds, beans and pulses.
Parameters
Moisture, protein, oil, test weight, starch, wet gluten, fibre, ash and many more.
Technology
NIR Transmittance
Approvals
(as per EN 15948 standard)
Protected against dust and water splashes (IP54 certified)
| Feature | Specification |
| Dimensions (w x d x h) | 410 x 460 x 445 mm |
| Weight | 28.5 kg (31 kg with Test Weight Module) |
| Voltage | 220-240V 50-60Hz or 110-120V |
| Rated current | 1.0A (110-120V) / 0.5A (220-240V) |
| Fuse | T 5 A (250 V) |
| Power consumption | 85 W (24 V) |
| Input supply | 24 V DC from FOSS approved power supply |
| Spectrometer | Scanning monochromater |
| Wavelength range | 400 - 1100 nm |
| Detector | Silicon |
| Optical bandwidth | 7 nm |
| Number of data points/scan | 1400 |
| Mode | Transmittance |
| Light source | Tungsten halogen lamp |
| Interface | Ethernet, 3 x USB (full function) including one on the instrument front for easy access |
| Display | 10 inch capacitive touch screen |
| Noise level | < 70 dB(A) |
| Degree of protection | IP 54 |
| Sample handling and result presentation | |
|
Analysis time |
Less than 60 seconds for 10 sub-samples including test weight analysis and as little as 40 seconds when dynamic sub-sampling enabled |
| Path length | Variable cell automatically controlled from 6 - 33 mm |
| Result report | Presented on the display as default. Can be sent to PC/LIMS and the printer port |
| Outlier function | Warnings and options for the presentation of the result |
| Software | Menu driven with touch screen interface |
| Regression programs | ANN (Retele neurale artificiale); PLS (Cele mai mici patrate) |
| No. of sub-samples | Between 1 and 30 sub-samples (10 sub-samples standard) |
| Instrument management | |
| Networking software | FossManager |
