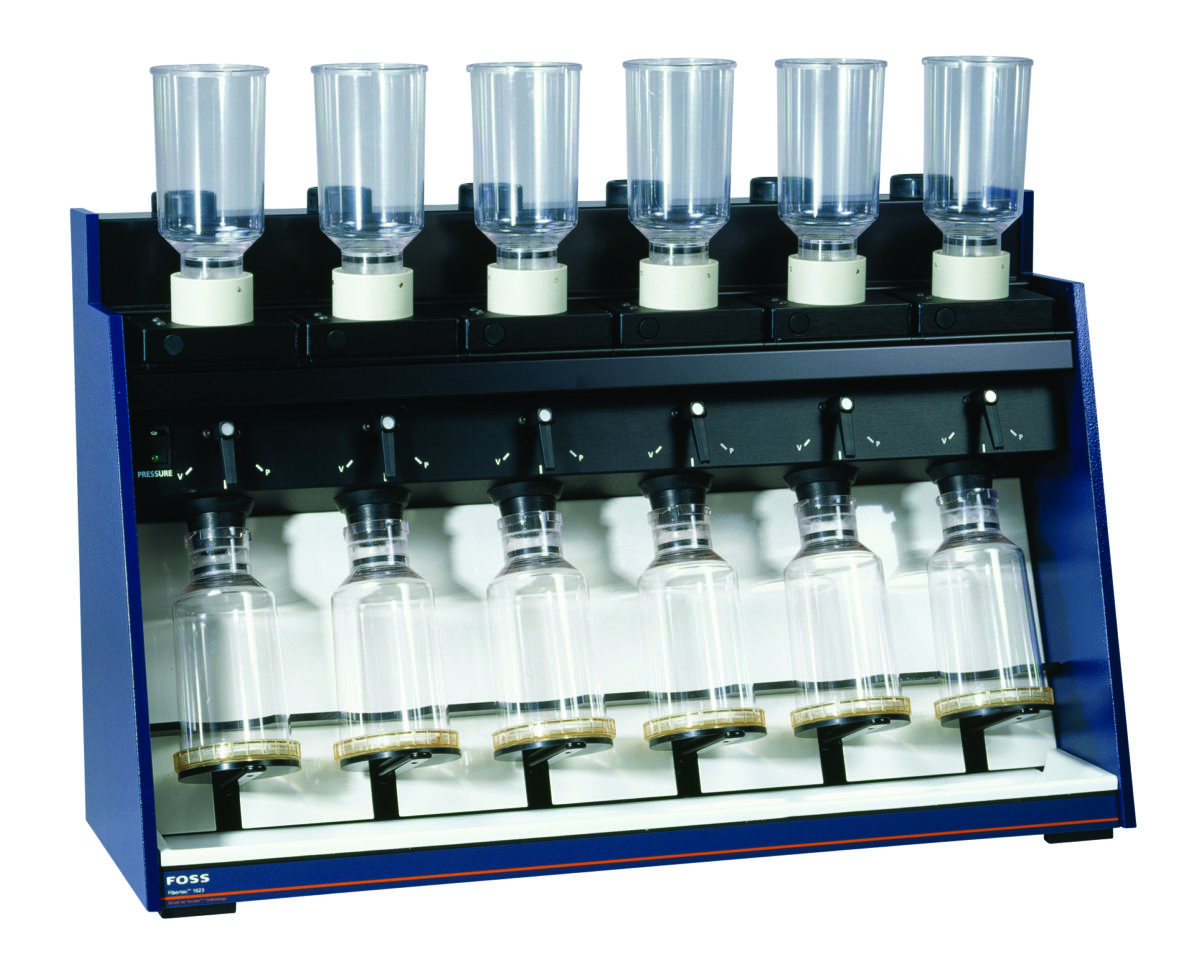

The Fibertec 1023 is designed for rapid and rational determination of dietary fibre according to established enzymatic methods, including those approved by AOAC, AACC, NMKL and Asp.
Total, soluble and insoluble dietary fibre
The Fibertec 1023 determines total dietary fibre as well as the insoluble and soluble fibres separately. It is also useful in sample preparation for detailed studies of fibre fractions, e.g. by chromatographic or colorimetric techniques.
Easy sample handling
Save time in the laboratory with batch handling tools. The filtration unit allows rapid filtration of up to 6 samples at a time, while the WB 1024 Water bath allows incubation of up to 12 samples in each batch.
Effective laboratory operations
The Fibertec 1023 ensures effective operations by handling samples in specially designed incubation flasks.
Sample type
Food and food ingredients such as: Cereal products, fruits and vegetables, health food, plant materials
Parameters
Total, soluble and insoluble dietary fibre
Technology
Semi-automated incubation and filtration system for quantitative determination of dietary fibre
Official reference method
AOAC 991.43 and AACC 32-07 TDF AOAC 991.42/43 and AACC 32-07 SDF, IDF AOAC 985.29 and AACC 32-05 TDF, IDF, SDF AOAC 2009.01 TDF Codex Definition method
| Performance data | |
| Filtration Module | |
| Filtration and dehydration capacity | 6 probe/batch |
| Filtration rate | 2-4 minutes/100 ml of digested solution, depending on sample type |
| Repeatability | S.D. <0.5% absolute |
| Flask volume | 600 ml |
| Accuracy | According to official methods |
| WB 1024 Water bath | |
| Capacity | 12 flasks/batch |
| Temperature range | ambient to 80°C |
| Temperature accuracy | ± 0.1°C |
| Shaking frequency | 0-150 strokes/minute |
| Stroke length | 0-50 mm |
| Installation requirements | ||||
| Equipment | Power supply | Power consumption |
Dimensions w × d × h cm |
Weight |
| 1023 Filtration Module | 210-230 V, 50-60 Hz | 8 W | 77×28×50 | 24kg |
| WB 1024 Water bath | 230 V, 50-60 Hz | 1500 W | 89×37×32 | 24 kg |
System description
Fibertec 1023
- Filtration module complete, comprising: Filtration module, incubation flasks (4 sets of 6), standard crucibles (P2, 2 sets of 6), basket for incubation flasks, 2 stands for crucibles, 2 spray bottles, 2 water aspiration pumps, filter aid, tubing, WB 1024 Water bath, complete, comprising: a tray for 12 incubation flasks and a hinged inclined lid.
- Filtration module as above but without WB 1024 Water bath
In addition, we recommend:
- Incubation flask (set of 6), at least 4 sets
- Crucible, P2 (40 - 100 µm) set of 6, at least 2 sets
- Basket for 12 incubation flasks, at least 1
- Total dietary fiber kit for 200 determinations
Accessories
Alternative filter crucibles:
Crucible, P0 (160 - 250 µm), set of 6
Crucible, P1 (90 - 150 µm), set of 6
Crucible, P3 (16 - 40 µm), set of 6
Stand for 6 crucibles
Alternative flask trays for other applications, e.g.
biochemical work:
Tray for Erlenmeyer flasks, 50 ml
Tray for Erlenmeyer flasks, 100 ml
Tray for Erlenmeyer flasks, 250 ml
Tray for Erlenmeyer flasks, 500 ml
